High Precision Micro Boring Head 6-245 mm with Indexable Tools (2 Micron)
High Precision Micro Boring Head 6-245 mm with Indexable Tools (2 Micron) - Image 2
High Precision Micro Boring Head 6-245 mm with Indexable Tools (2 Micron) - Image 3
High Precision Micro Boring Head 6-245 mm with Indexable Tools (2 Micron) - Image 4

High Precision Micro Boring Head 6-245 mm with Indexable Tools (2 Micron)

Technical Specifications:

● Boring range (mm) 6-245
● Boring Hole (mm) 20
● Graduation 1 Div.= 0.02/ 0.002 mm
● Tools Dia 20 (mm) Set of 7 Indexable Tools

Inclusions:

1. High Precision Micro Boring Head Dia 85 mm: 1 nos.
2. Shank (as per order/selection): 1 nos.
3. Boring Bars WCGT02/ TPGX09/ TPGX11 Dia 20 mm- 6 nos.
4. LN Keys: 3, 4, 6 mm (1 each)
5. Torx Flag Keys T6, T8

MuBore-85

Description

Tool Included

Boring range (mm) Boring hole(mm) Graduation Tools shank dia 12 mm
6-245 20 1 Div.= 0.02 mm/ 0.002
mm		 Set of 7 Indexable Tools



Boring range (mm) Boring length(mm) Adaptable insert
6-10 29 WCGT02
8-12 37 WCGT02
10-14 40 TPGX0902
12-100 50 TPGX0902
16-150 60 TPGX0902
20-150 80 TPGX0902
135-245 N/A TPGX11





Ordering code Shank/adaptor
BTBH1262-5M-BT40-IT6 BT40 (M16) BTMAS 403
BTBH1262-5M-CAT40-IT6 CAT40 (5/8”) CAT ANSI B5.50
BTBH1262-5M-BT50-IT6 BT50 (M24) BTMAS 403

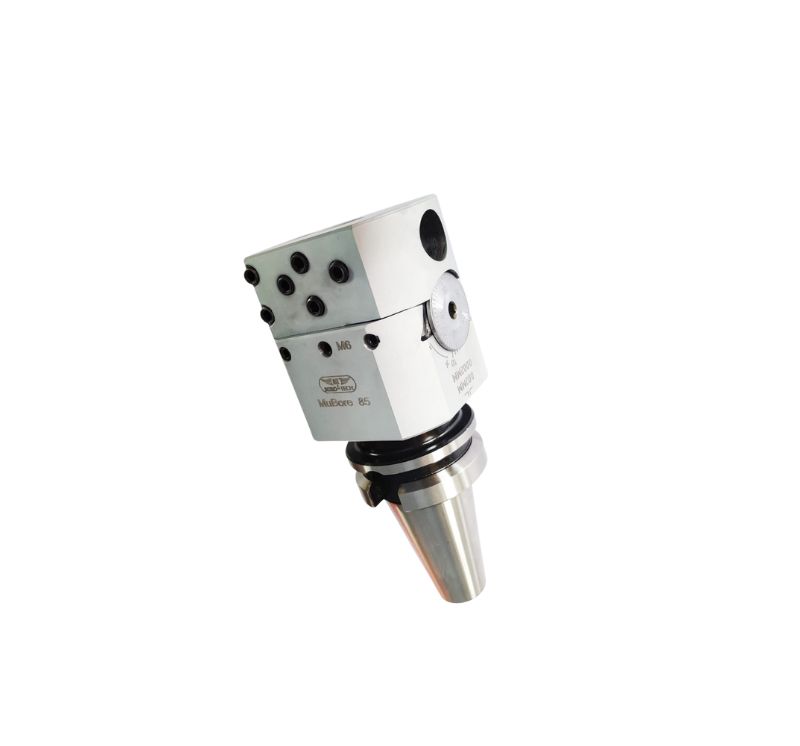

1. High Precision Micro Boring Head Dia 85 mm (MuBore-85) with a boring capacity of 6-
245 mm is a study unit ideal for die moulding and precision boring applications.
2. With two vertical holes of 20 mm, the unit can take tools with
shank dia 20 mm (right hand tools) and one can also use the
horizontal hole (with a left hand tool) for making larger bores.
3. The lead screw has an adjustment of 0.02 mm per division which
gives an adjustment of 40 microns on the diameter. Using the vernier scale, adjustment
of 0.002 mm can be made which gives an adjustment of 0.004 mm (4 micron)
diamterically.
4. It comes pre-fitted with a taper shank as per requirement.
5. The unit is hardened and ground to ensure sturdity and
increased longevity
6. The Boring Kit comes with 6 nos. Right Hand Indexable Tools
(WCGT02/TPGX0902) with shank Dia 20 mm and a TPGX11 Horizontal Tool for making
larger bores:
7. WCGT02:
1. Entry Dia 6 X Boring Length 29 mm- 1 Nos.
2. Entry Dia 8 X Boring Length 37 mm- 1 Nos.
8. TPGX09
1. Entry Dia 10 mm X Boring Length 40 mm- 1 nos.
2. Entry Dia 12 mm X Boring Length 50 mm- 1 nos.

9. Entry Dia 16 mm X Boring Length 60 mm- 1 nos.
10. Entry Dia 20 mm X Boring Length 80 mm- 1 nos.
11. TPGX11 Entry Dia 135 mm- 1 nos.
12. Inserts are to be purchased separately depending on the
material to be machined

INSTRUCTION MANUAL- Please follow the instructions given with the
kit to ensure proper usage and prevent damage

Additional information



Shank/ Adaptor BT40 (M16) BTMAS 403, CAT40 (5/8”) CAT ANSI B5.50, BT50 (M24) BTMAS 403
