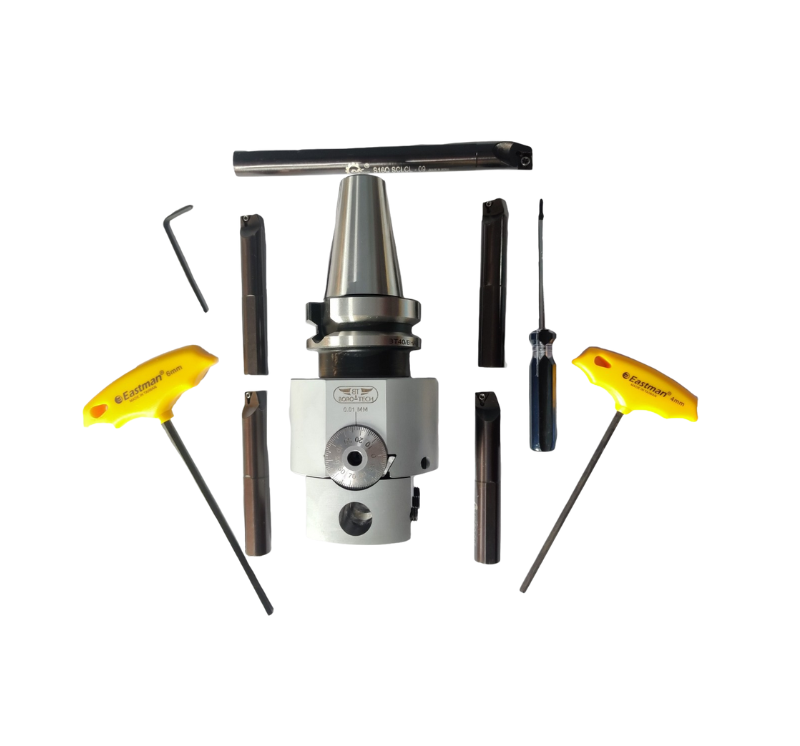

Micro Boring Head 16-150 mm

Technical Specifications:

● Boring range (mm) 16-150
● Boring Hole (mm) 16
● Graduation 1 Div.= 0.01
● Tools Shank Dia 16 mm TPGH09 Boring Bar R/H- 1 nos.

Inclusions:

Dia 16 mm CCMT09 Boring Bar L/H- 1 nos.
1. Micro Boring Head Dia 80 mm: 1 nos.
2. Shank (as per order/selection): 1 nos.
3. Boring Bars TPGX09/CCMT09 Dia 16 mm- 2 nos
4. LN Keys: 3, 4, 6 mm (1 each)
5. Torx Flag Keys T8

: BTBH1680-IT2

Description

Tool Included

Boring range (mm) Boring hole(mm) Graduation Tools shank dia 16 mm
16-150 16 1 Div.= 0.01 TPGH09 Boring Bar R/H- 1 nos. CCMT09 Left Hand Boring Bar-1 nos.



Boring range (mm) Boring length(mm) Adaptable insert
16-150 48 TPGX0902
125-150 N/A CCMT09



Ordering code Shank/Adaptor
BTBH1680-R8-IT2 R8/M1TR (M12×1.5)
BTBH1680-MT3-IT2 MT3 (M12×1.75)
BTBH1680-ISO30-IT2 ISO30 (M12×1.75) ISO DIN 2080
BTBH1680-ISO40-IT2 ISO40 (M16) ISO DIN 2080
BTBH1680-ISO50-IT2 ISO50 (M24) ISO DIN 2080
BTBH1680-BT40-IT2 BT40 (M16) BT–MAS 403
BTBH1680-BT50-IT2 BT50 (M24) BT–MAS 403
BTBH1680-CAT40-IT2 CAT40 (5/8”) CAT ANSI B5.50
BTBH1680-MT4-IT2 MT4 (M16×2)
BTBH1680-MT5-IT2 MT5 (M24)



1.Dia 80 mm Micro Boring Head Kit with a boring capacity of 16-
150 mm is a versatile unit and is a must for any Tool Room
workshop.
2. With two vertical holes of 16 mm, the unit can take tools with
shank dia 16 mm (right hand tools) and one can also use the
horizontal hole (with a left hand tool) for making larger bores.
3. The lead screw has an adjustment of 0.01 mm per division
which gives an adjustment of 20 microns on the diameter.
4. It comes pre-fitted with a taper shank as per requirement.
5. The unit is hardened and ground to ensure sturdity and
increased longevity.
6. The Boring Kit comes with 2 nos. Right Hand Indexable Tools
with shank Dia 16 mm
1. Entry Dia 16 mm X Boring Length 48 mm Right Hand- TPGX09- 1 nos.
2. Dia 16 mm CCMT09 Left Hand Tool- 1 nos..
3. Inserts are to be purchased separately depending on the
material to be machined.

INSTRUCTION MANUAL- Please follow the instructions given with
the kit to ensure proper usage and prevent damage

Additional information

Shank/ Adaptor R8/M1TR (M12X1.5), MT3 (M12X1.75), ISO30 (M12X1.75) ISO DIN 2080, ISO40 (M16) ISO DIN 2080, ISO50 (M24) ISO DIN 2080, BT40 (M16) BT- MAS 403, BT50 (M24) BT- MAS 403, CAT40 (5/8”) CAT ANSI B5.50
