Description

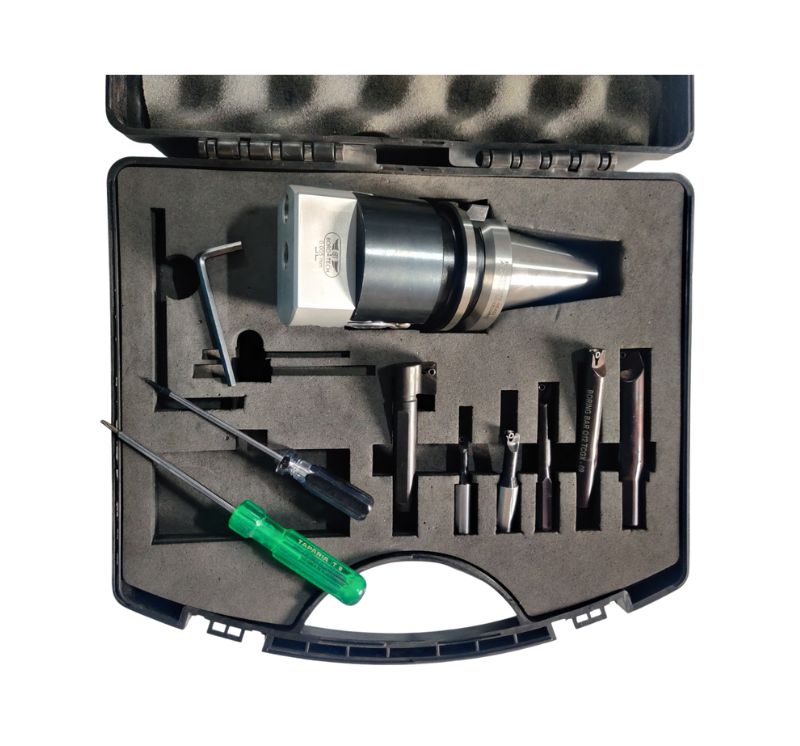

Tool Included
| Boring range (mm) | Boring hole(mm) | Graduation | Tools shank dia 12 mm |
| 6-245 | 20 | 1 Div.= 0.005 | Set of 6 Indexable Tools |
| Boring range (mm) | Boring length(mm) | Adaptable insert |
| 6-10 | 29 | WCGT02 |
| 8-12 | 37 | WCGT02 |
| 10-14 | 40 | TPGX0902 |
| 12-100 | 50 | TPGX0902 |
| 16-10 | 60 | TPGX0902 |
| 92-125 | N/A | TPGX0902 |
| Ordering code | Shank/adaptor |
| BTBH1262-5M-BT40-IT6 | BT40 (M16) BTMAS 403 |
| BTBH1262-5M-CAT40-IT6 | CAT40 (5/8”) CAT ANSI B5.50 |
| BTBH1262-5M-BT50-IT6 | BT50 (M24) BTMAS 403 |
1. High Precision Micro Boring Head Dia 62 mm with a boring capacity of
6-
125 mm is a versatile unit and is a must for any Tool Room
workshop.
2. With two vertical holes of 12 mm, the unit can take tools with
shank dia 12 mm (right hand tools) and one can also use the
horizontal hole (with a left hand tool) for making larger bores.
3. The lead screw has an adjustment of 0.005 mm per division which
gives an adjustment of 10 microns on the diameter.
4. It comes pre-fitted with a taper shank as per requirement.
5. The unit is hardened and ground to ensure sturdity and
increased longevity
6. The Boring Kit comes with 5 nos. Right Hand Indexable Tools
(WCGT02/TPGX0902) with shank Dia 12 mm and a Horizontal Tool for
making larger bores:
7. WCGT02:
1. Entry Dia 6 X Boring Length 29 mm- 1 Nos.
2. Entry Dia 8 X Boring Length 37 mm- 1 Nos.
8. TPGX09
1. Entry Dia 10 mm X Boring Length 40 mm- 1 nos.
2. Entry Dia 12 mm X Boring Length 50 mm- 1 nos.
9. Entry Dia 16 mm X Boring Length 60 mm- 1 nos.
3. Entry Dia 92 mm- 1 nos.
10.Inserts are to be purchased separately depending on the
material to be machined.
INSTRUCTION MANUAL-Please follow the instructions given with the kit to ensure proper usage and prevent damage
Additional information
| Shank/ Adaptor | BT40 (M16) BTMAS 403, CAT40 (5/8”) CAT ANSI B5.50, BT50 (M24) BTMAS 403 |
