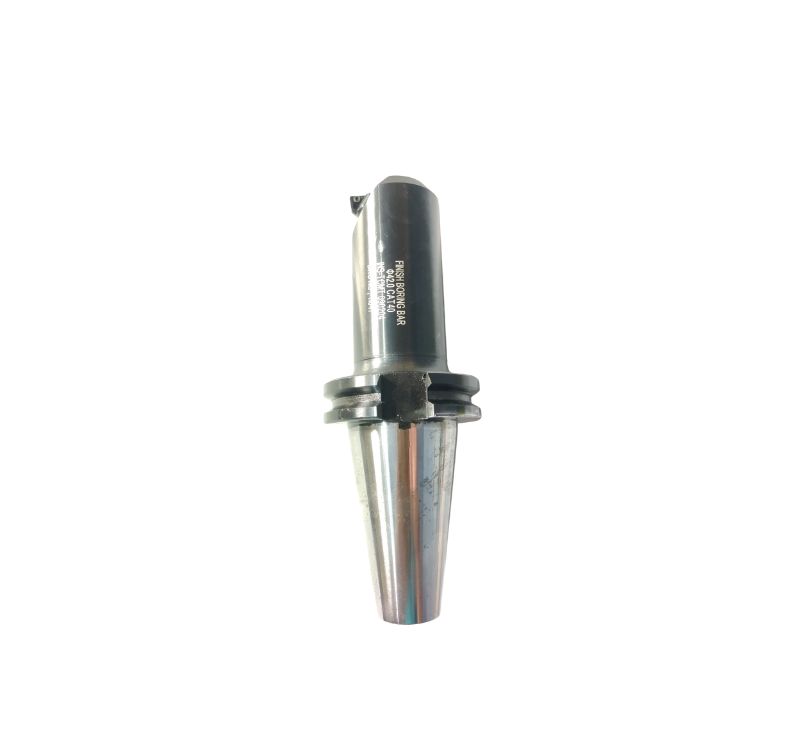

Finish Boring Bar CAT40 with Micro Boring Unit TPGX09
Finish Boring Bar CAT40 with Micro Boring Unit TPGX09 - Image 2
Finish Boring Bar CAT40 with Micro Boring Unit TPGX09 - Image 3
Finish Boring Bar CAT40 with Micro Boring Unit TPGX09 - Image 4

Finish Boring Bar CAT40 with Micro Boring Unit TPGX09

Technical Specifications:

● Boring range (mm) 25 mm onwards
● Graduation 1 Div.= 0.002 (diametrical)
● Adaptor: As per order

Inclusions:

1. Finish Boring Bar 42.0mm
2. Shank (as per order/selection): 1 nos.
3. MBU: TPGX09/ TCMT09
4. LN Keys: 3 mm
5. Torx Flag Keys T8

BTFBH

Description

Tool Included

Adaptable insert
TPGX0902



Ordering code Shank/adaptor
BTFBB-BT40-100L BT40 (M16X2)
BTFBB-CAT40-100L CAT40 (5/8″)
BTFBB-BT50-100L BT50 (M24)

1. Finish Boring Bar with Micro Boring Unit TPGX09/ TCMT09 are ideal for
production or batch operations in NC controlled machines.
2. Working length can be from 50-200 mm depending on boring size
required and machine spindle taper.
3. The adjustment is 0.002 mm on the diameter thus allowing for precision
bores to made.
4. The boring range is plus minus 0.5 mm.
5. Tapers available are BT40, CAT40, SK40, BT50, CAT50, SK50

INSTRUCTION MANUAL- Please follow the instructions given with
the kit to ensure proper usage and prevent damage

Additional Information:

Shank/ Adaptor R8/M1TR (M12X1.5), MT3 (M12X1.75), ISO30 (M12X1.75) ISO DIN 2080, ISO40 (M16) ISO DIN 2080, ISO50 (M24) ISO DIN 2080, BT40 (M16) BT- MAS 403, BT50 (M24) BT- MAS 403, CAT40 (5/8”) CAT ANSI B5.50

Additional information

Brand

Righer
weight

10 kg
color

Black
Width

20.8 inches (52.8 cm)
Height

16.0 inches (42.0 cm)

Reviews

There are no reviews yet.

Be the first to review “Finish Boring Bar CAT40 with Micro Boring Unit TPGX09”

Your email address will not be published. Required fields are marked *

Related products

  • Read more
    Quick View
    Compare
    Deep Boring Tools with Boring Bar and TPGX09 Cartridge
    Micro Boring Head

    Deep Boring Tools with Boring Bar and TPGX09 Cartridge
    Read more
    Quick View
    Tool Included:
    Adaptable Insert
    TPGX0902

    Ordering code Shank/adaptor
    BTBH1680 BT40 (M16X2)
    BTBH2075 BT40 (M16X2)
    BTBH25100 BT40 (M16X2)
    BTBH2085 BT40 (M16X2)
    1. Deep Boring Tools in Shank Dia 16, 20 and 25 mm which holds Cartridges such as TPGX09,used for deeper boring operations using our Boring Heads like Dia 80, Dia 75 and Dia 100 mm Units. 2. Working length including cartridge can be 117 mm for entry Dia 26.25 mm. 3. The adjustment and maximum bore size will depend on the base boring head type used. INSTRUCTION MANUAL - Please follow the instructions given with the kit to ensure proper usage and prevent damage Additional information: Shank/ Adaptor: R8/M1TR (M12X1.5), MT3 (M12X1.75), ISO30 (M12X1.75) ISO DIN 2080, ISO40 (M16) ISO DIN 2080, ISO50 (M24) ISO DIN 2080, BT40 (M16) BT- MAS 403, BT50 (M24) BT- MAS 403, CAT40 (5/8”) CAT ANSI B5.50
    Quick View
  • Read more
    Quick View
    Compare
    Placeholder
    Micro Boring Head

    Micro Boring Head Dia 62 mm R8-Integrated Kit
    Read more
    Quick View
    Tool Included
    Boring Range (mm) Boring Hole (mm) Graduation Tool Shank Dia. 12 mm
    10–125 12 1 Div. = 0.01 Set of 3 Indexable Tools

    Boring Range (mm) Boring Length (mm) Adaptable Insert
    10–12 40 TPGX0902
    12–100 50 TPGX0902
    92–125 N/A TPGX0902

    Ordering Code Shank / Adaptor
    BTBH1262-R8-IT3 R8 / M1TR (M12×1.5)
      1. Dia 62 mm R8-Integrated Micro Boring Head Kit with a boring capacity of 10- 125 mm is a rigid and versatile unit and is a must for any Tool Room workshop. 2. The Head and R8 Shank (drawbar thread of M12X1.5mm) part are integrated which reduces vibration to a greater extent and can be used in applications where rigidity and tolerances are important. 3. With two vertical holes of 12 mm, the unit can take tools with shank dia 12 mm (right hand tools) and one can also use the horizontal hole (with a left hand tool) for making larger bores. 4. The lead screw has an adjustment of 0.01 mm per division which gives an adjustment of 20 microns on the diameter. 5. The unit is hardened and ground to ensure sturdity and increased longevity 6. The Boring Kit comes with 2 nos. Right Hand Indexable Tools (TPGX0902) with shank Dia 12 mm and a Left Hand Tool 1. Entry Dia 10 mm X Boring Length 40 mm- 1 nos. 2. Entry Dia 12 mm X Boring Length 50 mm- 1 nos. 3. Entry Dia 92 mm TPGX0902- 1 nos. 7. Inserts are to be purchased separately depending on the material to be machined. INSTRUCTION MANUAL- Please follow the instructions given with the kit to ensure proper usage and prevent damage Additional information
    Shank/ Adaptor R8/M1TR (M12X1.5), MT3 (M12X1.75), ISO30 (M12X1.75) ISO DIN 2080, ISO40 (M16) ISO DIN 2080, BT40 (M16) BT- MAS 403, CAT40 (5/8”) CAT ANSI B5.50
    Quick View
  • Read more
    Quick View
    Compare
    Placeholder
    Micro Boring Head

    Micro Boring Head Dia 3″ with Adaptor
    Read more
    Quick View
    Tool Included
    Boring Range (mm) Boring Hole (mm) Graduation
    3/4" – 5" 3/4" 1 Div. = 0.001 thou

    Ordering Code Shank / Adaptor
    BTBH3"-R8 R8 / M1TR (7/16")
    BTBH3"-MT3 MT3 (M12×1.75)
    BTBH3"-ISO30 ISO30 (M12×1.75) ISO DIN 2080
    BTBH3"-ISO40 ISO40 (M16) ISO DIN 2080
    BTBH3"-ISO50 ISO50 (M24) ISO DIN 2080
    BTBH3"-BT40 BT40 (M16) BT–MAS 403
    BTBH3"-BT50 BT50 (M24) BT–MAS 403
    BTBH3"-CAT40 CAT40 (5/8”) CAT ANSI B5.50
      1. Dia 3″ Micro Boring Head Kit is a sturdy unit for boring large diameters. It can be used to bore sizes from 3/4″ to up to 5″. 2. This is very useful for boring deeper bores with depths of up to 3-1/4″. 3. The slide is hardened and ground which ensures its stable and sturdy and also increases the longevity of the unit. 4. There are two vertical holes and a horizontal hole of 3/4″. The vertical holes can take tools of shank dia 3/4″ and bore from 3/4″ to up to 5″. With an offset of 1″, the unit can bore a maximum diameter of 6″ using a left hand tool in the horizontal hole. 5. The lead screw has an adjustment of 0.001 thou. 6. It comes pre-fitted with a taper shank such as MT3, R8, ISO30, ISO40, as per requirement. INSTRUCTION MANUAL- Please follow the instructions given with the kit to ensure proper usage and prevent damage Additional information
    Shank/ Adaptor R8/M1TR (M12X1.5), MT3 (M12X1.75), ISO30 (M12X1.75) ISO DIN 2080, ISO40 (M16) ISO DIN 2080, ISO50 (M24) ISO DIN 2080, BT40 (M16) BT- MAS 403, BT50 (M24) BT- MAS 403, CAT40 (5/8”) CAT ANSI B5.50
    Quick View
  • Read more
    Quick View
    Compare
    Micro Boring Head 10-180 mm with 5 nos. TPGH09/11 Indexable Tool
    Micro Boring Head

    Micro Boring Head 10-180 mm with 5 nos. TPGH09/11 Indexable Tool
    Read more
    Quick View
    Tool Included
    Boring range (mm) Boring hole(mm) Graduation Tools shank dia 20 mm
    10-175 20 1 Div.= 0.01 TPGH09 Boring Bar R/H- 4 nos. TPGH11 Boring Bar L/H- 1 nos.

    Boring range (mm) Boring length(mm) Adaptable insert
    10-12 40 TPGX0902
    12-16 48 TPGX0902
    16-50 64 TPGX0902
    20-125 74 TPGX0902
    105-175 N/A TPGX1102
    Ordering code Shank/Adaptor
    BTBH2075-R8-IT5 R8/M1TR (M12×1.5)
    BTBH2075-MT3-IT5 MT3 (M12×1.75)
    BTBH2075-ISO30-IT5 ISO30 (M12×1.75) ISO DIN 2080
    BTBH2075-ISO40-IT5 ISO40 (M16) ISO DIN 2080
    BTBH2075-ISO50-IT5 ISO50 (M24) ISO DIN 2080
    BTBH2075-BT40-IT5 BT40 (M16) BT–MAS 403
    BTBH2075-BT50-IT5 BT50 (M24) BT–MAS 403
    BTBH2075-CAT40-IT5 CAT40 (5/8”) CAT ANSI B5.50
    1.Dia 75 mm Micro Boring Head Kit is a sturdy unit for boring large diameters. It can be used to bore sizes from 10 mm to up to 175 mm using a set of TPGX09/TPGX11 Indexable Tools. 2. This is very useful for boring deeper bores with depths of up to 80 mm. 3. The slide is hardened and ground which ensures its stable and sturdy and also increases the longevity of the unit. 4. There are two vertical holes and a horizontal hole of 20 mm. The vertical holes can take tools of shank dia 20 mm and bore from 10 mm to up to 125 mm. With an offset of 25 mm, the unit can bore a maximum diameter of 150 mm using a left hand tool in the horizontal hole. 5. The lead screw has an adjustment of 0.01 mm per division which gives and adjustment of 20 micron on the diameter. 6. It comes pre-fitted with a taper shank as per requirement. 7. The boring kit comes with 4 nos. Dia 20 mm TPGX09 Right Hand Tools and 1 Nos. TPGX1102 Left Hand Tool: 1. Entry Dia 10 mm X Boring Length 40 mm TPGX0902- 1 nos. 2. Entry Dia 12 mm X Boring Length 48 mm TPGX0902- 1 nos. 3. Entry Dia 16 mm X Boring Length64 mm TPGX0902- 1 nos. 4. Entry Dia 20 mm X Boring Length 80 mm TPGX0902- 1 nos. 5. Entry Dia 105 mm TPGX1102- 1 nos. Inserts are to be purchased separately depending on the material to be machined. INSTRUCTION MANUAL- Please follow the instructions given with the kit to ensure proper usage and prevent damage Additional information
    Shank/ Adaptor R8/M1TR (M12X1.5), MT3 (M12X1.75), ISO30 (M12X1.75) ISO DIN 2080, ISO40 (M16) ISO DIN 2080, ISO50 (M24) ISO DIN 2080, BT40 (M16) BT- MAS 403, BT50 (M24) BTMAS 403, CAT40 (5/8”) CAT ANSI B5.50
