Expansion Collets

 Home Metlartis  - Products - Expansion Collets

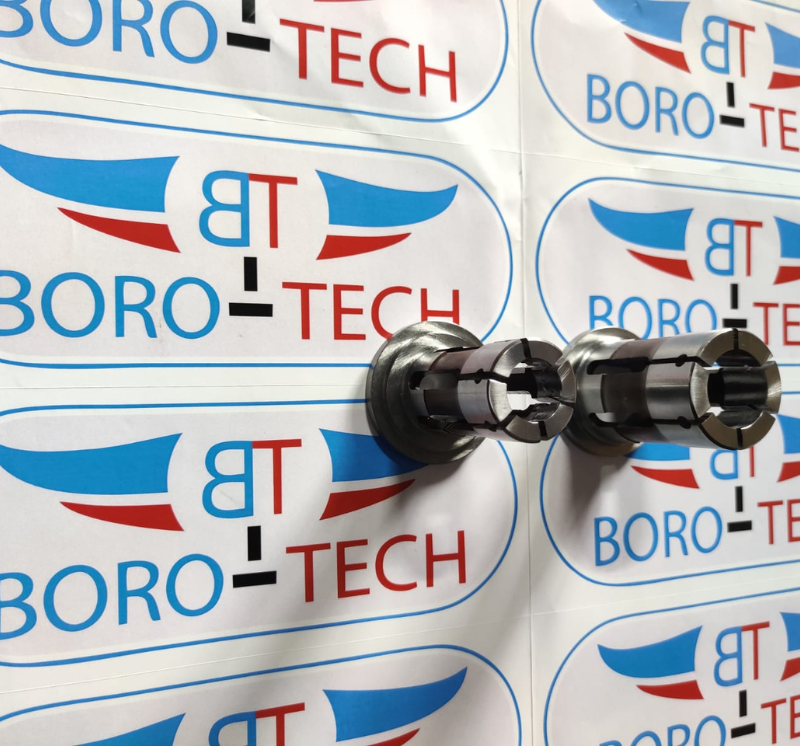

Expansion Collets

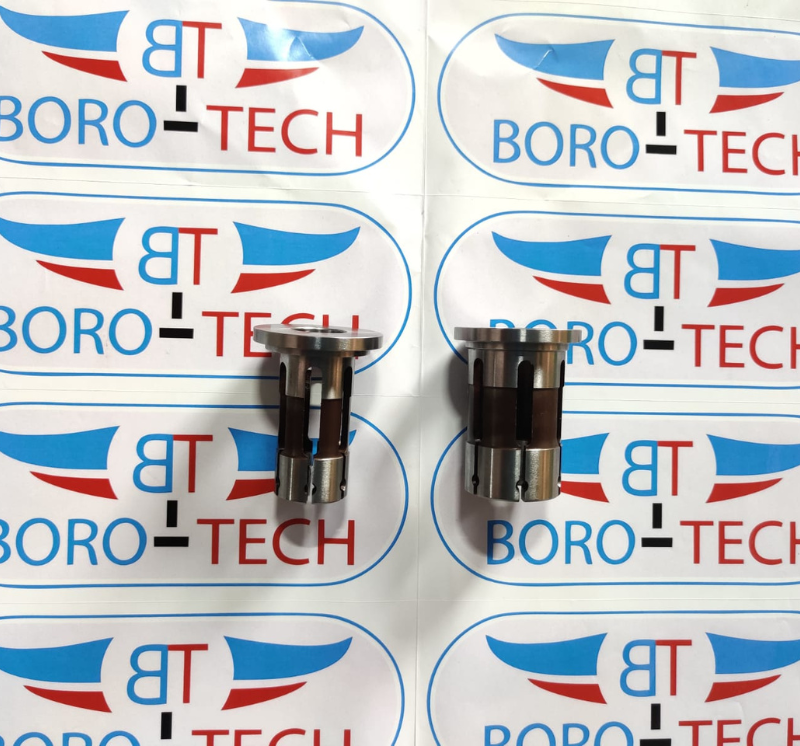

Expansion Collets - Image 2

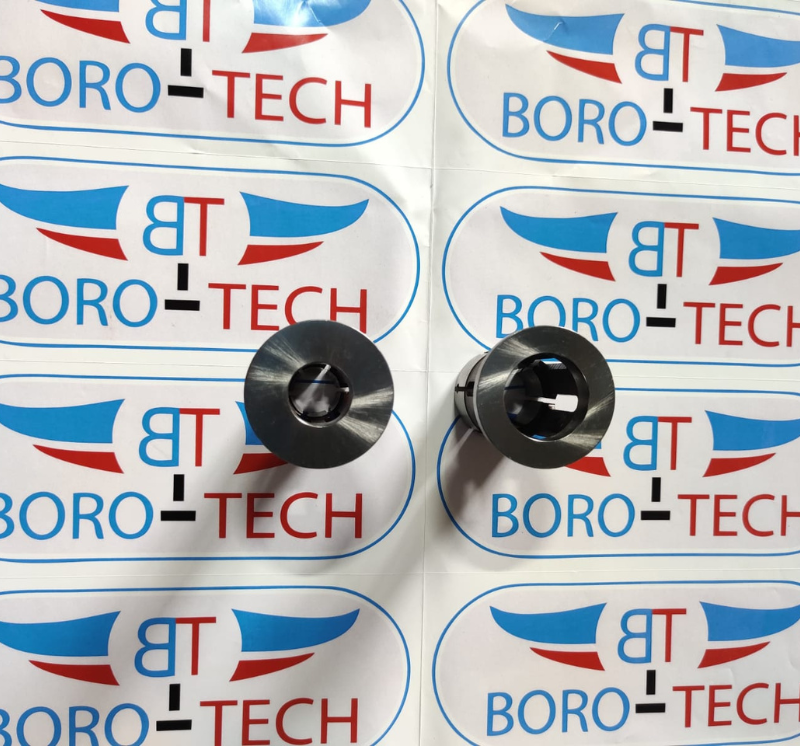

Expansion Collets - Image 3

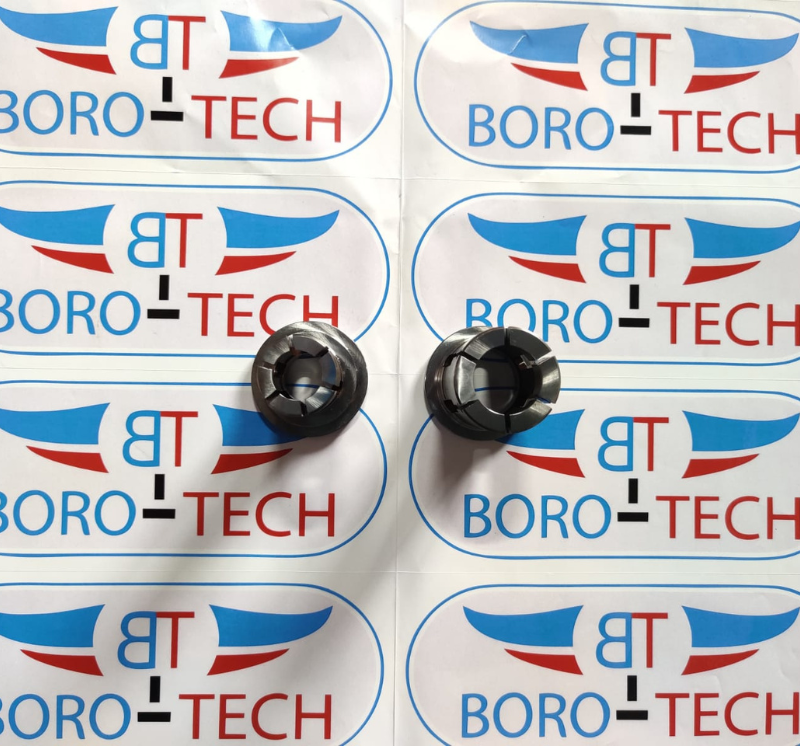

Expansion Collets - Image 4

Expansion Collets

Technical Specifications:

● Expansion Collets: Customised, as per drawing
● Crafted from European Spring Steel
● Useful for machining long tubes, center to center machining

Expansion-Collets-1 ,

Description

Tool Included

Ordering Code Shank/Adaptor

 1. Expansion Collets used for holding tubes for machining.
2. Ideal for center to center machining on long tubes, pipes
3. Customisation can be done based on drawing provided by user
4. Made from European Spring Steel
5. All collets are properly hardened to ensure rigidity and enhance life.

INSTRUCTION MANUAL:

Please follow the instructions given with the kit to ensure proper usage and prevent damage

Additional information

Shank/ Adaptor BT40 (M16) BTMAS 403, CAT40 (5/8”) CAT ANSI B5.50, BT50 (M24) BTMAS 403

Additional information

Color

Brown, White, Green
Style

Modern, Simple

Reviews

There are no reviews yet.

Be the first to review “Expansion Collets”

Your email address will not be published. Required fields are marked *
