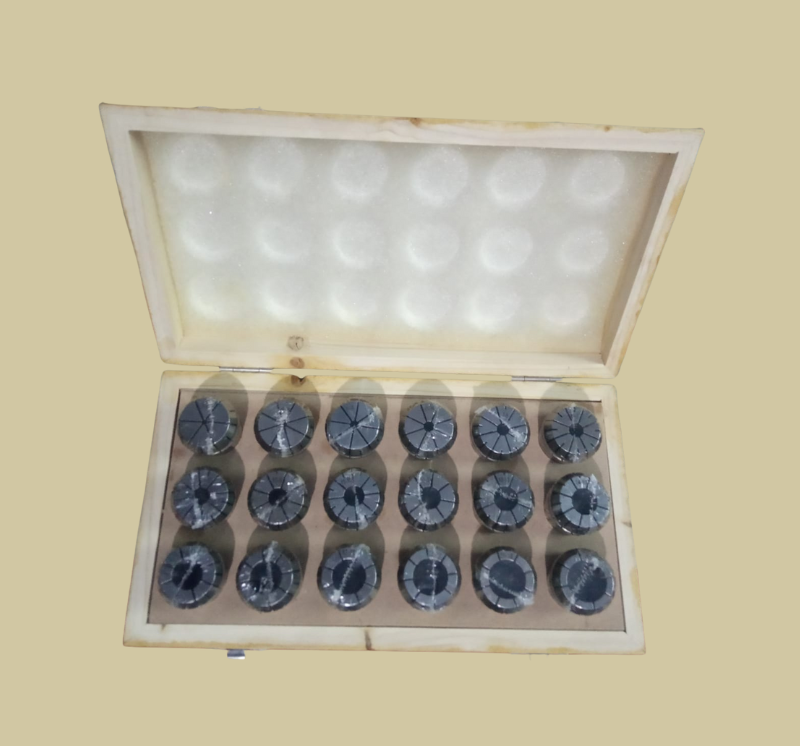

ER Collets (DIN6499) ER8- ER50
ER Collets (DIN6499) ER8- ER50 - Image 2
ER Collets (DIN6499) ER8- ER50 - Image 3

ER Collets (DIN6499) ER8- ER50

Technical Specifications:

● ER Collets: ER8, ER11, ER16, ER20, ER25, ER32, ER40, ER50
● Crafted from European Spring Steel
● DIN6499: Standard Precision (0.010-0.012 mm)
● High Precision: 0.008 mm available on request
● Inches sizes available on order

Inclusions:

1. ER8- 1 mm to 5 mm (9 pcs set) (Collapse: 0.5 mm)
2. ER11- 1 mm to 7 mm (13 pcs set) (Collapse: 0.5 mm)
3. ER16- 1 mm to 10 mm (10 pcs set) (Collapse: 1 mm)
4. ER20- 2 mm to 13 mm (12 pcs set) (Collapse: 1 mm)
5. ER25- 2 mm to 16 mm (15 pcs set) (Collapse: 1 mm)
6. ER32- 3 mm to 20 mm (18 pcs set) (Collapse: 1 mm)
7. ER40- 4 mm to 26 mm (23 pcs set) (Collapse: 1 mm)
8. ER50- 12 mm to 34 mm (12 pcs set) (Collapse: 2 mm)

ER-Collets-1 ,

Description

Tool Included:

Ordering Code

Shank/Adaptor

1. Complete range from ER8 to ER50 Collets are available.
2. Made from European Spring Steel, ER Collets come with a standard
precision of 0.010 to 0.012 mm run-out.
3. High-Precision collets with 0.008 mm run-out are also available on
request.
4. All ER collets are properly hardened to ensure rigidity and enhance life.
5. The ER collets are designed to clamp from 0.5 mm to 1 mm depending
on the size.

INSTRUCTION MANUAL:

Please follow the instructions given with the kit to ensure proper usage and prevent damage

Additional information:

Shank/ Adaptor BT40 (M16) BTMAS 403, CAT40 (5/8”) CAT ANSI B5.50, BT50 (M24) BTMAS 403

Reviews

There are no reviews yet.

Be the first to review “ER Collets (DIN6499) ER8- ER50”

Your email address will not be published. Required fields are marked *

Related products

  • Read more
    Quick View
    Compare
    Placeholder
    Micro Boring Head

    Micro Boring Head Dia 62 mm R8-Integrated Kit
    Read more
    Quick View
    Tool Included
    Boring Range (mm) Boring Hole (mm) Graduation Tool Shank Dia. 12 mm
    10–125 12 1 Div. = 0.01 Set of 3 Indexable Tools

    Boring Range (mm) Boring Length (mm) Adaptable Insert
    10–12 40 TPGX0902
    12–100 50 TPGX0902
    92–125 N/A TPGX0902

    Ordering Code Shank / Adaptor
    BTBH1262-R8-IT3 R8 / M1TR (M12×1.5)
      1. Dia 62 mm R8-Integrated Micro Boring Head Kit with a boring capacity of 10- 125 mm is a rigid and versatile unit and is a must for any Tool Room workshop. 2. The Head and R8 Shank (drawbar thread of M12X1.5mm) part are integrated which reduces vibration to a greater extent and can be used in applications where rigidity and tolerances are important. 3. With two vertical holes of 12 mm, the unit can take tools with shank dia 12 mm (right hand tools) and one can also use the horizontal hole (with a left hand tool) for making larger bores. 4. The lead screw has an adjustment of 0.01 mm per division which gives an adjustment of 20 microns on the diameter. 5. The unit is hardened and ground to ensure sturdity and increased longevity 6. The Boring Kit comes with 2 nos. Right Hand Indexable Tools (TPGX0902) with shank Dia 12 mm and a Left Hand Tool 1. Entry Dia 10 mm X Boring Length 40 mm- 1 nos. 2. Entry Dia 12 mm X Boring Length 50 mm- 1 nos. 3. Entry Dia 92 mm TPGX0902- 1 nos. 7. Inserts are to be purchased separately depending on the material to be machined. INSTRUCTION MANUAL- Please follow the instructions given with the kit to ensure proper usage and prevent damage Additional information
    Shank/ Adaptor R8/M1TR (M12X1.5), MT3 (M12X1.75), ISO30 (M12X1.75) ISO DIN 2080, ISO40 (M16) ISO DIN 2080, BT40 (M16) BT- MAS 403, CAT40 (5/8”) CAT ANSI B5.50
    Quick View
  • Read more
    Quick View
    Compare
    Placeholder
    Micro Boring Head

    Micro Boring Head 6-125 mm with CAT40 Shank and 6 Nos. TPGX09 Indexable Tools
    Read more
    Quick View
    Tool Included
    Boring range (mm) Boring hole (mm) Graduation / Div. Tools Shank dia 12 mm.
    6 – 125 12 1 (Div. = 0.01) Set of 6 indexable tools

    Boring range (mm) Boring length (mm) Adaptable insert
    6 – 8 29 WCGT 0201
    8 – 10 37 WCGT 0201
    10 – 12 40 TPGX 0902
    12 – 100 50 TPGX 0902
    16 – 100 60 TPGX 0902
    92 – 125 N/A TPGX 0902

    Ordering code Shank / Adaptor
    BTBH1262-CAT40-IT6 CAT40 (5/8″) CAT ANSI B5.50
      1.Dia 62 mm Micro Boring Head Kit with a boring capacity of 6-125 mm is a versatile unit and is a must for any Tool Room workshop. 2. With two vertical holes of 12 mm, the unit can take tools with shank dia 12 mm (right hand tools) and one can also use the horizontal hole (with a left hand tool) for making larger bores. 3. The lead screw has an adjustment of 0.01 mm per division which gives an adjustment of 20 microns on the diameter. 4. It comes pre-fitted with a CAT40 Taper Shank (drawbar thread5/8” X 20 UNF) 5. The unit is hardened and ground to ensure sturdity and increases longevity. 6. The Boring Kit comes with 5 nos. Right Hand Indexable Tools with shank Dia 12 mm and 1 Left Hand Tool 1. Entry Dia 6 mm X Boring Length 29 mm- WCGT 0201- 1 nos. 2. Entry Dia 8 mm X Boring Length 37 mm- WCGT 0201- 1 nos. 3. Entry Dia 10 mm X Boring Length 40 mm TPGX0902- 1 nos. 4. Entry Dia 12 mm X Boring Length 50 mm TPGX0902- 1 nos. 5. Entry Dia 16 mm X Boring Length 60 mm TPGX0902- 1 nos. 6. Entry Dia 92 mm TPGX0902- 1 nos. Inserts are to be purchased separately depending on the material to be machined. INSTRUCTION MANUAL- Please follow the instructions given with the kit to ensure proper usage and prevent damage Additional information
    Part Description
    Shank / Adaptor CAT40 (5/8”) CAT ANSI B5.50
    Quick View
  • Read more
    Quick View
    Compare
    High Precision Micro Boring Head 6-245 mm with Indexable Tools (2 Micron)
    Micro Boring Head

    High Precision Micro Boring Head 6-245 mm with Indexable Tools (2 Micron)
    Read more
    Quick View
    Tool Included
    Boring range (mm) Boring hole(mm) Graduation Tools shank dia 12 mm
    6-245 20 1 Div.= 0.02 mm/ 0.002 mm Set of 7 Indexable Tools

    Boring range (mm) Boring length(mm) Adaptable insert
    6-10 29 WCGT02
    8-12 37 WCGT02
    10-14 40 TPGX0902
    12-100 50 TPGX0902
    16-150 60 TPGX0902
    20-150 80 TPGX0902
    135-245 N/A TPGX11

    Ordering code Shank/adaptor
    BTBH1262-5M-BT40-IT6 BT40 (M16) BTMAS 403
    BTBH1262-5M-CAT40-IT6 CAT40 (5/8”) CAT ANSI B5.50
    BTBH1262-5M-BT50-IT6 BT50 (M24) BTMAS 403
    1. High Precision Micro Boring Head Dia 85 mm (MuBore-85) with a boring capacity of 6- 245 mm is a study unit ideal for die moulding and precision boring applications. 2. With two vertical holes of 20 mm, the unit can take tools with shank dia 20 mm (right hand tools) and one can also use the horizontal hole (with a left hand tool) for making larger bores. 3. The lead screw has an adjustment of 0.02 mm per division which gives an adjustment of 40 microns on the diameter. Using the vernier scale, adjustment of 0.002 mm can be made which gives an adjustment of 0.004 mm (4 micron) diamterically. 4. It comes pre-fitted with a taper shank as per requirement. 5. The unit is hardened and ground to ensure sturdity and increased longevity 6. The Boring Kit comes with 6 nos. Right Hand Indexable Tools (WCGT02/TPGX0902) with shank Dia 20 mm and a TPGX11 Horizontal Tool for making larger bores: 7. WCGT02: 1. Entry Dia 6 X Boring Length 29 mm- 1 Nos. 2. Entry Dia 8 X Boring Length 37 mm- 1 Nos. 8. TPGX09 1. Entry Dia 10 mm X Boring Length 40 mm- 1 nos. 2. Entry Dia 12 mm X Boring Length 50 mm- 1 nos. 9. Entry Dia 16 mm X Boring Length 60 mm- 1 nos. 10. Entry Dia 20 mm X Boring Length 80 mm- 1 nos. 11. TPGX11 Entry Dia 135 mm- 1 nos. 12. Inserts are to be purchased separately depending on the material to be machined INSTRUCTION MANUAL- Please follow the instructions given with the kit to ensure proper usage and prevent damage Additional information
    Shank/ Adaptor BT40 (M16) BTMAS 403, CAT40 (5/8”) CAT ANSI B5.50, BT50 (M24) BTMAS 403
    Quick View
  • Read more
    Quick View
    Compare
    Expansion Collets
    Collets

    Expansion Collets
    Read more
    Quick View
    Tool Included
    Ordering Code Shank/Adaptor
     1. Expansion Collets used for holding tubes for machining. 2. Ideal for center to center machining on long tubes, pipes 3. Customisation can be done based on drawing provided by user 4. Made from European Spring Steel 5. All collets are properly hardened to ensure rigidity and enhance life. INSTRUCTION MANUAL: Please follow the instructions given with the kit to ensure proper usage and prevent damage Additional information
    Shank/ Adaptor BT40 (M16) BTMAS 403, CAT40 (5/8”) CAT ANSI B5.50, BT50 (M24) BTMAS 403
