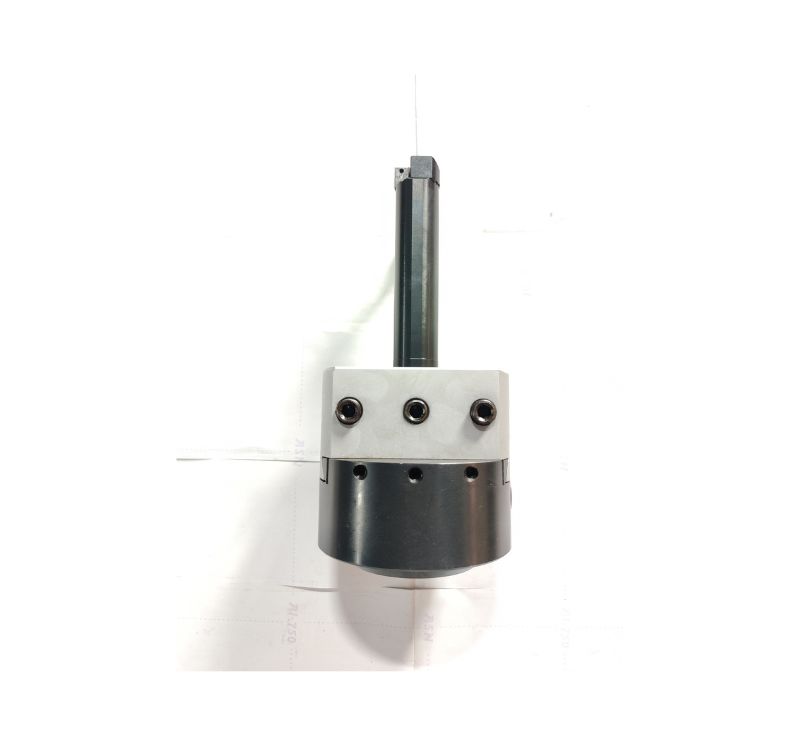

Deep Boring Tools with Boring Bar and TPGX09 Cartridge
Deep Boring Tools with Boring Bar and TPGX09 Cartridge - Image 2
Deep Boring Tools with Boring Bar and TPGX09 Cartridge - Image 3
Deep Boring Tools with Boring Bar and TPGX09 Cartridge - Image 4

Deep Boring Tools with Boring Bar and TPGX09 Cartridge

Technical Specifications:

● Boring range (mm) 26-150

● Boring Hole (mm) 16/20/25

● Graduation 1 Div.= 0.01

● Tools Shank Dia 16/20/25 mm TPGH09 Cartridge R/H- 1 nos.

Inclusions:

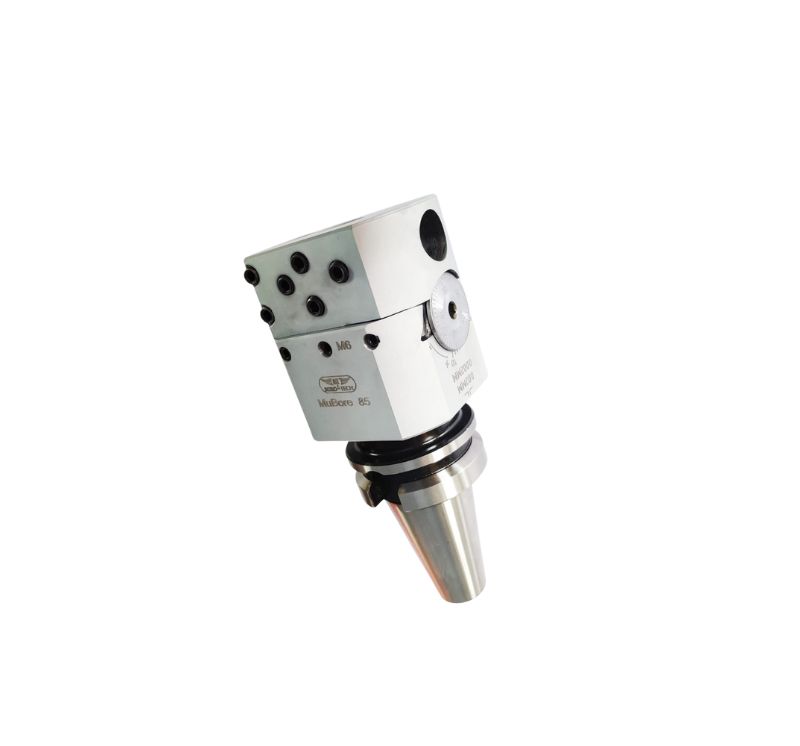

1. Micro Boring Head Dia 75/80/85/100 mm: 1 nos.

2. Shank (as per order/selection): 1 nos.

3. Boring Bars TPGX09/CCMT09 Dia 16/20/25 mm

4. LN Keys: 3, 4, 6 mm (1 each)

5. Torx Flag Keys T8

BTBHDeep-Tool-TPGX09

Description

Tool Included:

Adaptable Insert
TPGX0902



Ordering code Shank/adaptor
BTBH1680 BT40 (M16X2)
BTBH2075 BT40 (M16X2)
BTBH25100 BT40 (M16X2)
BTBH2085 BT40 (M16X2)

1. Deep Boring Tools in Shank Dia 16, 20 and 25 mm which holds Cartridges such as TPGX09,used for deeper boring operations using our Boring Heads like Dia 80, Dia 75 and Dia 100 mm Units.

2. Working length including cartridge can be 117 mm for entry Dia 26.25 mm.

3. The adjustment and maximum bore size will depend on the base boring head type used.

INSTRUCTION MANUAL – Please follow the instructions given with the kit to ensure proper usage and prevent damage

Additional information:

Shank/ Adaptor:

R8/M1TR (M12X1.5), MT3 (M12X1.75), ISO30 (M12X1.75) ISO DIN 2080, ISO40 (M16) ISO DIN 2080, ISO50 (M24) ISO DIN 2080, BT40 (M16) BT- MAS 403, BT50 (M24) BT- MAS 403, CAT40 (5/8”) CAT ANSI B5.50
